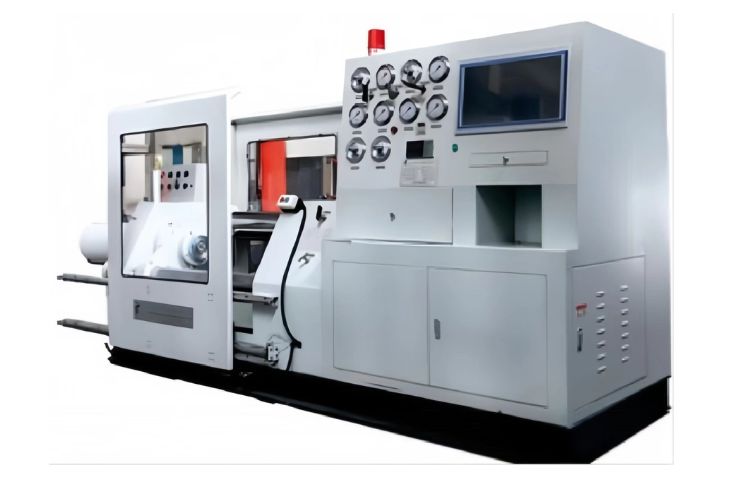

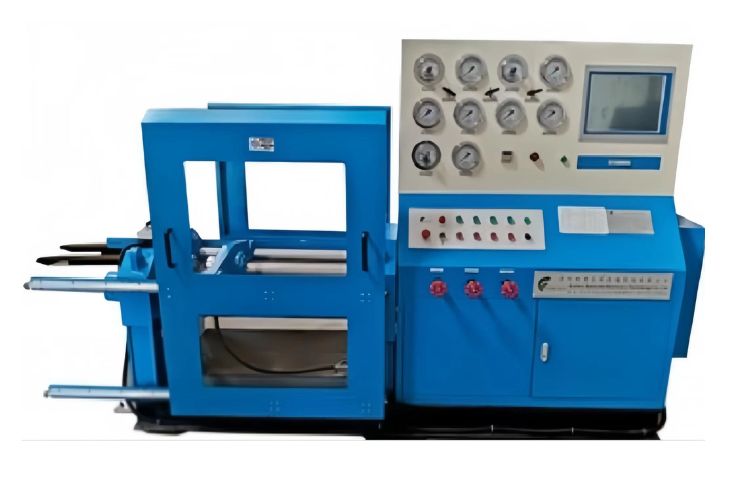

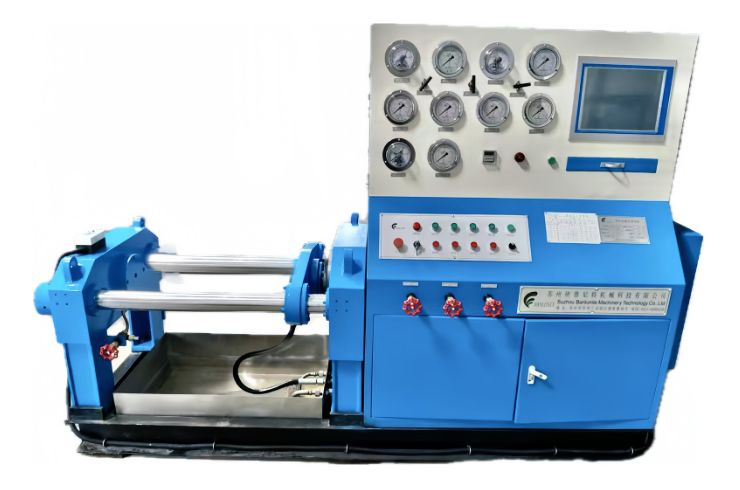

Description

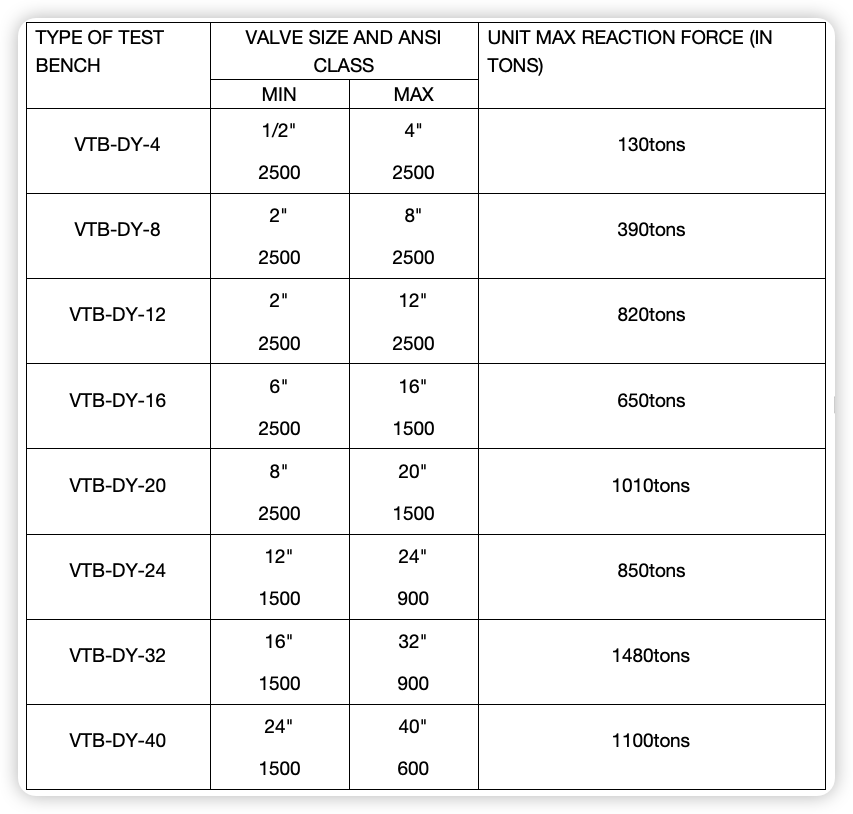

Equipment Technical Parameters
Technical Performance and Features
• Equipped with an advanced servo control system and self-lifting cylinder system;
• Low-pressure water injection, high-pressure water injection, and pressure holding time are automatically controlled by the system;
• Automatic unloading during standby and automatic resumption of working state upon startup, reducing oil temperature, extending equipment life, and saving energy;
• Hydraulic jacking and water pressure unloading are interlocked for safety;
• Equipped with a safety door to effectively prevent accidents;
• Advanced software system; equipment operation, test result recording, and analysis can all be performed with a single touch on the touchscreen;
• Uses hydraulic jacking to tighten the flange, eliminating external force influence on the tested valve.
