Intelligent Ball Valve Assembly Line

This integrated semi-automatic assembly and fully automatic testing system utilizes robotic loading/unloading.

It features domestic-leading advantages in efficiency, stability, and automation. By reducing logistics and floor space, it ensures high product consistency and safety.

Designed for the valve industry’s ‘small batch, multi-variety’ needs, it facilitates standardized management and quality traceability.

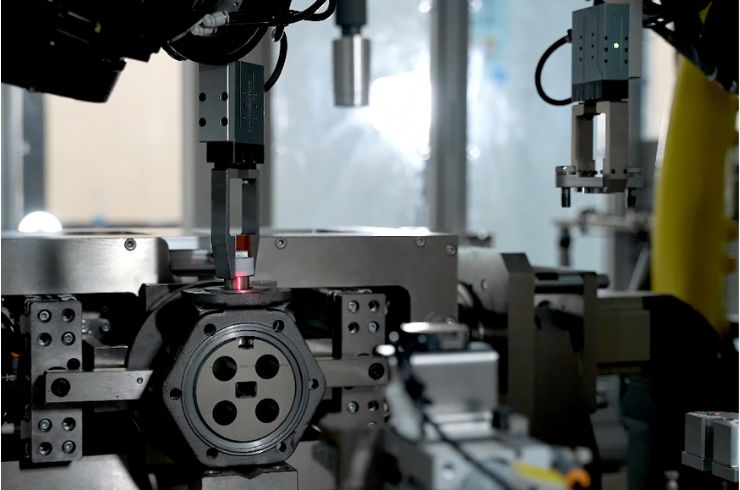

Intelligent Ball Valve Assembly Line - Image 2

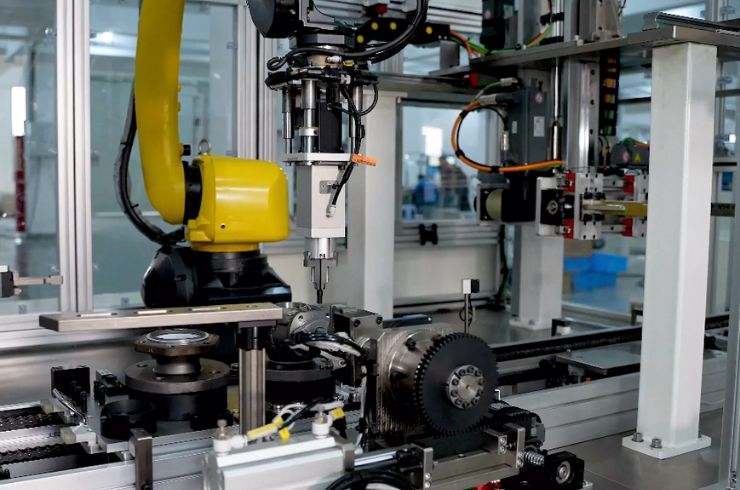

Intelligent Ball Valve Assembly Line - Image 3

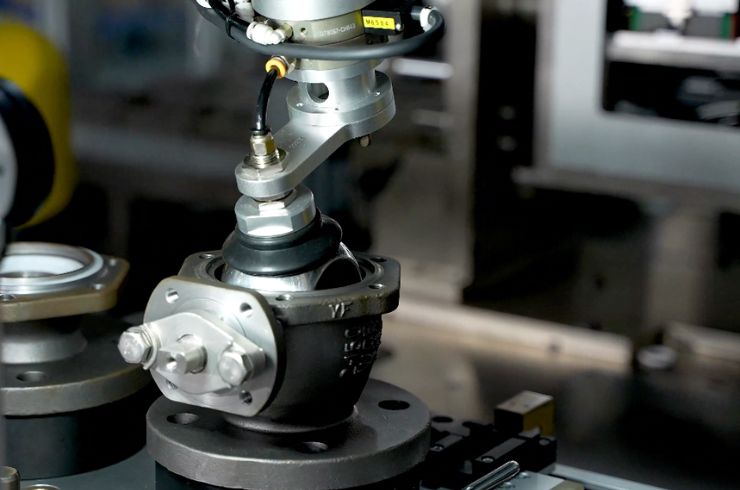

Intelligent Ball Valve Assembly Line - Image 4

Description

Description

Parameters

• Nominal Diameter: DN15-DN50 DN50-DN100

• Pressure Rating: 150LB-2500LB

• Medium: Water & Gas

• Assembly Takt Time: 120 S/Piece

• Changeover Time: 30 S

Features

• Automatic assembly, including automatic loading of valve stems, packing, and tie rods; and automatic tightening of nuts with adjustable torque settings.

• Automatic testing capabilities (covering valve body integrity, A/B face sealing, and torque) with automatic result judgment.

• Automatic nameplate welding and product marking.

• MES integrationand real-time data monitoring
